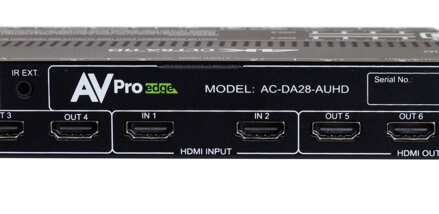

AC-DA28-AUHD 18G

AC-DA28-AUHD 18G

N O V I N K A 2018

A full 18Gbps 4K60 (4:4:4) dual input, 8 output distribution amplifier with two output zones

Dostupnosť: Skladom

Výrobca: AVProEdge

produktový list

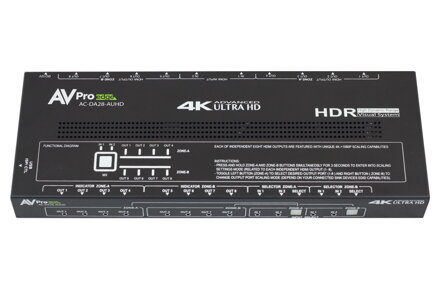

AC-DA28-AUHD 18G

A full 18Gbps 4K60 (4:4:4) dual input, 8 output distribution amplifier with two output zones

4

5

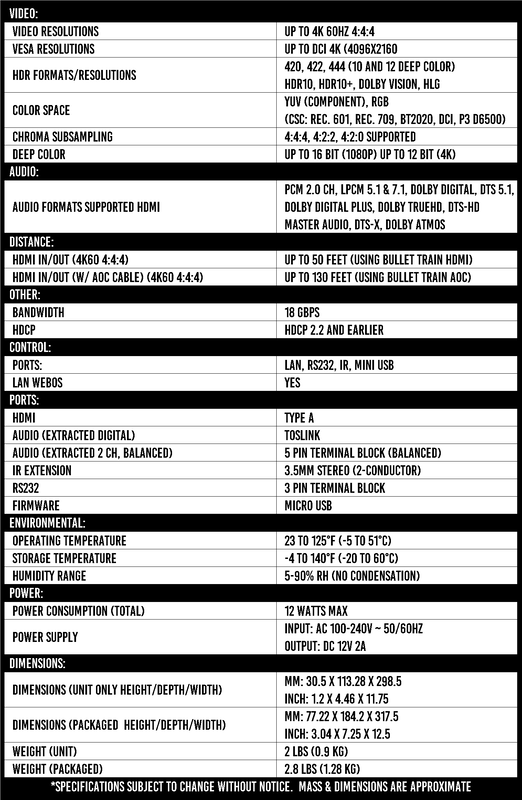

• HDMI 2.0(a/b)
• HDCP 2.2 (and all earlier versions supported)
• Max. TMDS Clock 600MHz, Max. Data Rate 18Gbps
• Supported resolution UltraHD/4k*2160P*60Fps@24bit YUV4:4:4
• Max. resolution UltraHD/8k*4320P*30Fps@YUV4:2:0
• Full HDR Support (HDR 10 & 12 Bit)
• Dolby Vision, HDR10 (HDR10+) and HLG Support
• 2*HDMI2.0b Inputs (Matrix Functionality)

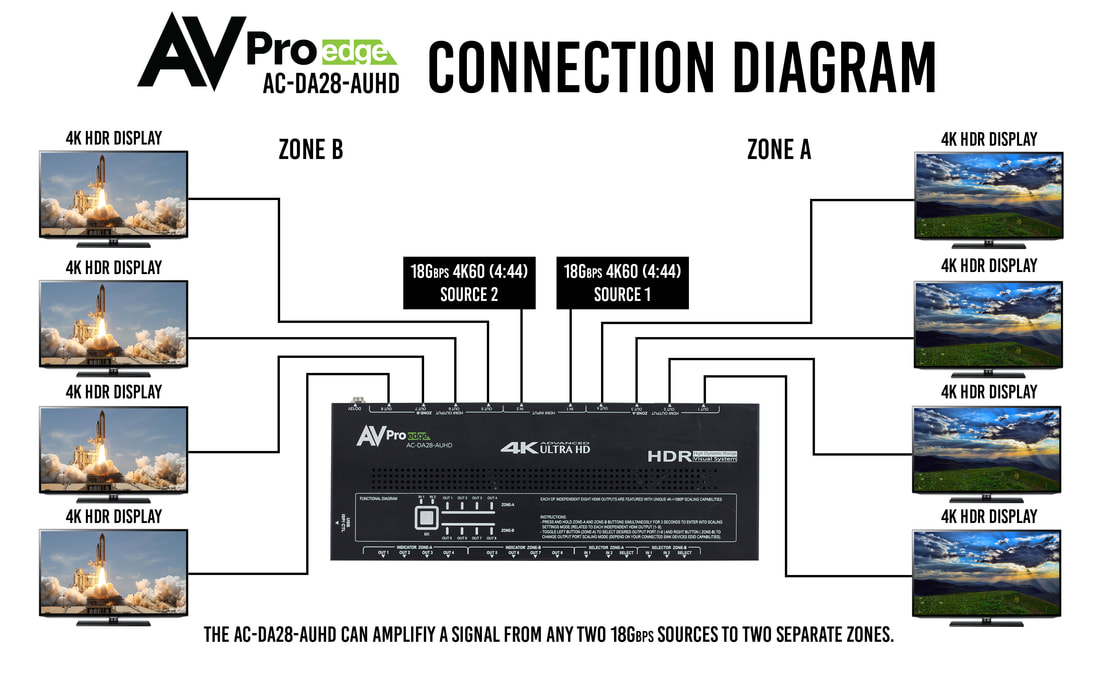

• 2*Switchable Output Zones (Zona A 4*HDMI2.0b Out @ Zona B 4*HDMI2.0b Out)
• Advanced EDID Management
• Audio Out Digital Toslink Out 7.1 & analog L/R Audio
• LAN Web GUI Control and full API
• Remote Status Monitoring
• Locking Power Connector
• Power supply 230V/12V
• Cascadable

The AC-DA28-AUHD is a member of our true 18Gbps Distribution Amplifier family. This product is ideal on all applications where stable distribution is key. These distribution amplifiers can be cascaded for extended distances and additional outputs.

Full 18Gbps and HDR support ensures military grade stability even at the highest of bandwidths. Install the distribution amplifier with confidence in your next bar, restaurant, digital signage, commercial or residential install and see the difference
________________________________________
Key benefits of using AC-DA28-AUHD:

18Gbps Support (4K60 4:4:4):
This Distribution Amplifier offers the highest available bandwidth to ensure maximum stability in distributed HDMI systems, even at higher resolutions. With the added bandwidth you can comfortably use all of the latest 4K sources without worrying about headroom. With these DA's you are already prepared for all 4K formats and some 8K formats.

LAN Control Interface:
This allows you to control the switch/splitter from anywhere on the network, including EDID management, switching and monitoring input and output status.

Audio Extraction:
Extract audio via Digital Toslink Out (7CH PCM, DD, DD+, DTS, DTS-MA). Allows you to send digital audio signals to a different location. Need to down-mix? Check out the AC-ADM-COTO or AC-ADM-AUHD

Cascading:
The AC-DA28-AUHD was designed for cascading. You will not have any concerns cascading this unit for several "hops". There is even a built in "cascade mode" that can be enabled for plug and play compatibility.

Full HDR Support:
One often overlooked feature to include is the ability to maintain the integrity of HDR. We are 100% compatible with HDR and will repeat the signal in its full integrity.

EDID Management:
Advanced EDID management is on board so you can select from 16 different setting, including Cascade Mode, auto and "from display". All of this enhances your ability to get the right signal throughout the system and ensures communication with any 3rd party device.

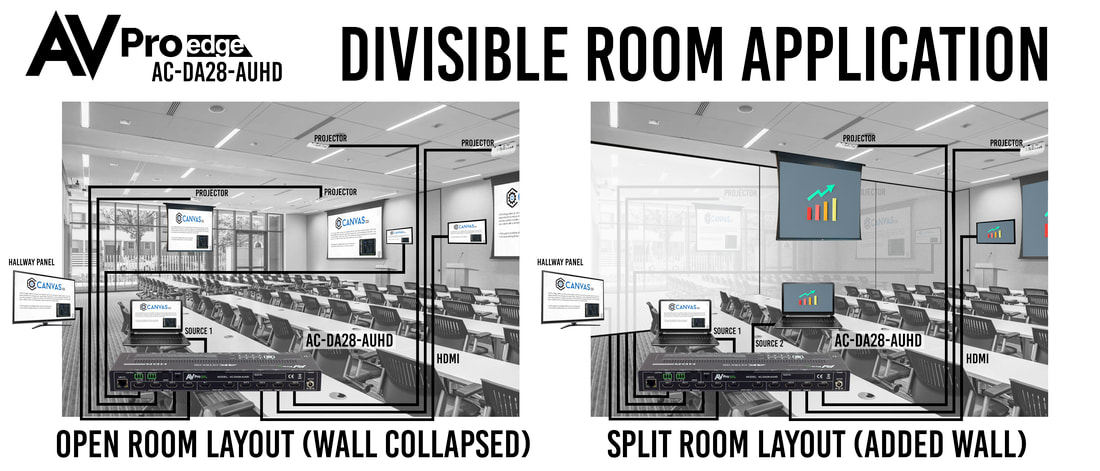

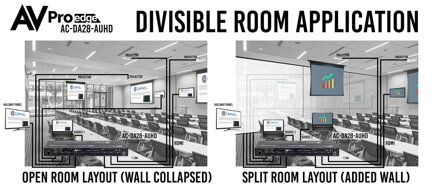

Where do these fit?
These devices are used in almost any 1 to many applications. The fact that we are 18 GBPS means anyone who want to distribute 4K UHD with HDR will need to upgrade soon.

Think:
• Retail signal distribution – Big Box Stores & Local Retail for Advertising; School's & Office's for Info-boards – 1000's of new accounts just opened up to you!
• Bars & Restaurants – a very simple way to "split" the signal to show in multiple locations.
• Digital Signage – low cost method for airports, rail, subway and more to distribute high value 4K signals
• A word on Cascading – need more displays? Just connect an output to the next devices input (all 3 are cross compatible) and keep stringing the displays together – now you have a 1 x 50 AUHD DA!

_____________________7___________________

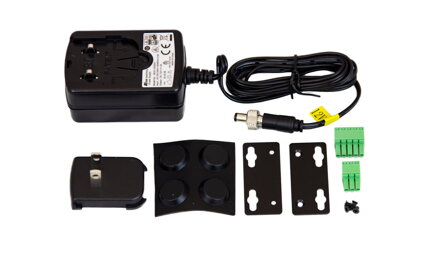

Whats in the box?
• AC-DA28-AUHD
• Operating Instructions
• 12V Locking Power Supply (100-240v input)
• Mounting Ears
________________________________________
Resources
Manual
Command List
